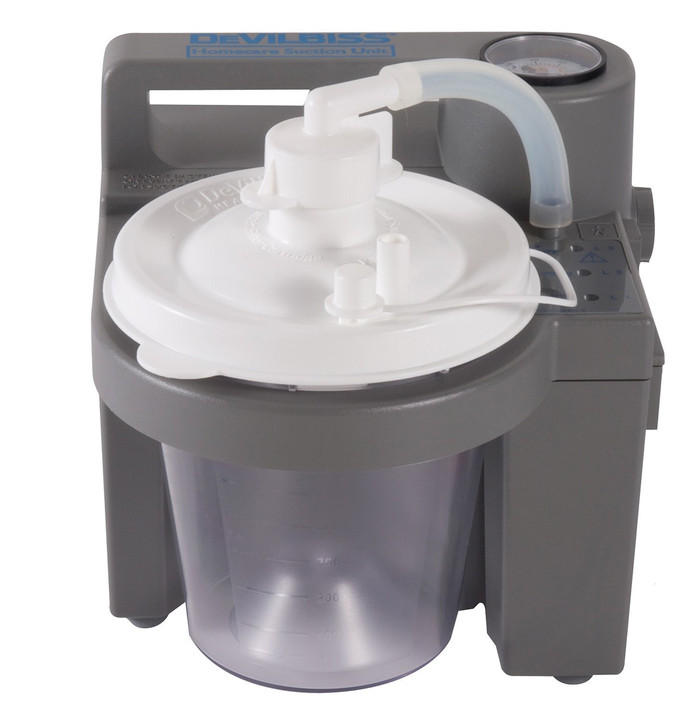

DeVilbiss Vacu Aide Suction Unit 7305D-D

(No reviews yet) Write a Review

Options

$224.00
MSRP: $283.34
You save $59.34
Or

Info

SKU:7305D-D

Info

SKU:
7305D-D

Warranty

Dimensions: 9"L x 7"W x 8"H Weight: 3.8 lbs. …

Warranty

Dimensions: 9"L x 7"W x 8"H
Weight: 3.8 lbs.
Sound Level: < 70 dbA
Vacuum Range: 80 - 550 mmHg*
Operating Flow Rate: 0 - 27 LPM*
Electrical Requirements: 100 - 240 VAC, 50/60 Hz, 0.75 A
Power Consumption: 33 W maximum
Approvals: IEC 601-1
CAN/CSA-C22.2 No. 601.1-M90
UL 60601-1
EN 60601-1-2
Operating Temperature Range: 32°F - 104°F
Operating Relative Humidity: 0 - 95%
Operating Atmospheric Pressure: 10.2 - 15.4 Psi (70 - 106 kPA)
Operating Mode: Intermittent: 30 min. ON, 30 min. OFF
Collection Jar Capacity: Disposable 800 mL
Optional Reusable 1200 mL
Limited Warranty: Limited 2 years, excluding collection bottle
* Conditions may vary based on altitude, barometric changes and system configuration

Description

The DeVilbiss Homecare Suction Unit series is designed to fit the active life styles of today's customers. The DeVilbiss 7305 Series Vacu-Aide® Suction Unit meets suction and capacity requirements in a small, lightweight design.

CLICK HERE FOR OWNER'S MANUAL

  • High performance capabilities in a small, compact package
  • Vacuum adjustments allow for 80 - 550 mm Hg and a free flow of 27 liters/minute
  • Easy-to-Read Gauge - Especially important when precise measurements of vacuum are needed for the pediatric patient
  • Adjustable Flow Regulator - Easy-to-turn knob conveniently placed directly below gauge, for easy use and control
  • Flow knob has safety lock feature which will not allow the knob to be twisted off
  • Compact Design - All of the high-performance capabilities are conveniently placed in a small compact package weighing less than 4 lbs.
  • The compact design with the high-performance capabilities makes the 7305 series suction unit the smallest and strongest portable suction unit of its kind
  • Meets the RTCA/DO160D Aircraft Standard as well as the ISO-10079 Suction Standard
  • Universal AC power and 12V DC power cord operation
  • Single person use collection jars and 6' suction tubing for quick and easy replacement (1 set included)
  • Collection jar has 800 mL (cc) capacity with 6 foot suction tubing
  • Suction catheter not included
  • Replacement Collection Bottle Tubing Connection Kit available as option:
      • Kit includes 800 mL (cc) collection jar, 6' suction tubing, bacteria filter, connection tubing and elbow
  • Replacement Kit is recommended to change every 2-3 months with regular use
  • Click HERE to download Owner's Manual

To speak with a customer service representative, call 1-800-956-6616

  • Designed for most home care suction applications
  • High performance capabilities in compact package
  • Easy to read gauge and operation
  • Vacuum pressure adjusts 80 - 550 mmHg
  • Operate with AC power or DC car adapter
  • Comes with power cords, collection jar, filter and 6 ft suction tube
