Actuator Set Construction
The Flex-A-Bed actuator set inc…
Warranty
Actuator Set Construction
The Flex-A-Bed actuator set includes independent head and foot motors, hand control, power control. This system is designed by and used only by Flex-A-Bed. All parts are made and assembled by Flex-A-Bed. The entire mechanical and electrical system is sealed and self lubricating eliminating the need for future maintenance.
Frame Construction
The Flex-A-Bed frame is constructed of heavy angle iron and tubing. The frame is welded in all stationary areas. Attached to the steel frame is a 1/2" thick Advantech platform which is hinged in three areas to create the contouring foundation of the bed. At Flex-A-Bed we begin with the very best quality raw materials. From truck loads of steel we form the parts, weld the assemblies and paint our own patented articulating frame.
Standard Dimensions
Twin XL:
38" x 80"
Full XL:
53" x 80"
Queen:
60" x 80"
Split Queen*:
30" x 80" each (x2)
Split King*:
38" x 80" each (x2)
Base Height:
12" (w/ casters)
Under Bed Clearance:
3" (w/ casters)
Casters:
2"
Standard Adjustable Base Weight**
Twin XL:
130 lbs.
Full XL:
160 lbs.
Queen:
170 lbs.
Split Queen*:
130 lbs. each (x2)
Split King*:
130 lbs. each (x2)
User Weight Capacity
Standard:
300 lbs. per bed
Heavy Duty:
400 lbs. per bed
*Two Twin XL beds placed together
**Mattress weight not included
Limited 5 Year Warranty
Years 1: Free In-Home Parts Exchange and Labor Included
Years 2-5: Repair Fee of $100 plus shipping both ways
This warranty does not apply to any product subjected to customer misuse, alteration or repaired by an unauthorized representative.
Specifications
Weight Capacity,
Weight Capacity,
Delivery Option,
Bed Width,
Bed Width,
Bed Width,
Bed Width,
_nonreturnable,

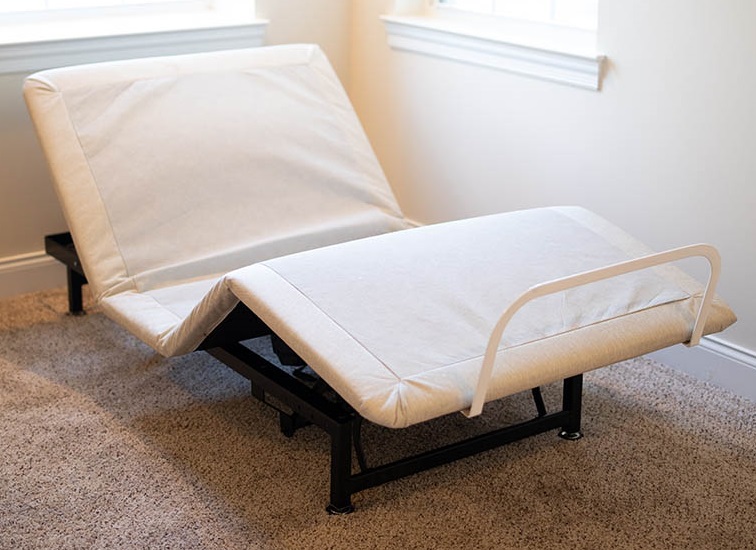

The Flex-A-Bed Value-Flex 158 adjustable electric bed is an entry-level, economical adjustable bed perfect for those living on a fixed income. Because every Flex-A-Bed is hand crafted using the highest quality materials available, it supports the mattress - and you - perfectly. Consider the Value Flex 158 adjustable bed if you've been dreaming about discovering this kind of comfort in a bed. Every Flex-A-Bed adjustable bed is hand built by expert craftsmen in the USA, using the same principles of care and consideration since 1969.
All motors have modular plugs for easy replacement
The Value-Flex 158 base does not have hand control holders (as pictured)
Heavy duty locking casters to prevent unwanted bed movement
Independent head and foot motors
Mattress retainer bar
Headboard brackets included to attach to existing headboards
Welded steel frames - not riveted as with most other frames
Height from floor to top of foundation is 12" and can be lowered to 10" by removing the casters
Height can be raised in 1" increments from 2"-7" with optional leg extensions
Clearance under the bed is 3" (with casters, no leg extensions)
Standard 80" bed length also available in 74" and 84" lengths (extra charge)
Available in Twin, Full, Queen, Split Queen and Split King sizes in 74", 80" and 84" lengths
Standard weight capacity is 300 lbs. with optional reinforced frame which supports up to 400 lbs.
Base & Foundation
Optional Heavy Duty bed frame with 400 lb. weight capacity includes 6 legs for extra support, reinforced steel in frame and lift arms for added strength, and duty duty motors for reliable operation
Optional Innerspring Mattress
Single-sided innerspring mattress with plush, multi-layered, quilted cushion top made with hi-density, polyurethane foam and flame resistant polyester fiber
336-coil, 13-gauge heat tempered Bonello spring unit is the premium unit for adjustable beds
Bottom layer is protected by a non-skid flame resistant barrier to help prevent the mattress from sliding across the adjustable foundation
Quilted cushion top is tape-edged all the way around to secure it to the mattress sides and bottoms to prevent shifting or bunching
Entire mattress is inner bonded to insure durability and superb tailoring throughout the life of the mattress
Finely tailored with no splicing of tape edge or borders
Mattress is approximately 10" high at crown (9" high at edge)
Mattress firmness available in Soft, Medium and Firm
Optional Single or Pair Bed Rails
Single Bed Rail (Left or Right) is determined when laying in bed on back
Assembly Required (instructions included)
Limited 5 Year Warranty
Year 1: Free In-Home Parts Exchange and Labor Included
Years 2-5: Repair Fee of $100 plus shipping both ways
This warranty does not apply to any product subjected to customer misuse, alteration or repaired by an unauthorized representative
Delivery Method
FREE Threshold Delivery includes delivery of box(es) up to the front door of building or garage (no set up)
Optional White Glove Delivery includes in-home delivery and set-up
To speak with a customer service representative, call 1-800-956-6616
Hand built by expert craftsmen in the USA since 1969
Economical adjustable bed base available in Twin, Full, Queen and Split King sizes
Whisper quiet motor technology
Hand control operates independent head and foot adjustments
Optional leg extensions and bed rails
5 year warranty includes 1 year in-home parts and labor
